  • Cold Chain Storage Steel Structure Workshop with Custom Design

Cold Chain Storage Steel Structure Workshop with Custom Design

Tailored to Customer Needs, Ideal for Cold Chain Storage, Large-Span Space
Email : david@ygsteelbuild.com
WhatsApp : +8618153456551
Contact Us

Product Parameters

Product Description

Product Overview

Factory-prefabricated steel structure cold storage warehouses for industrial refrigeration (-40°C to 15°C adjustable). Integrated with 100/120/150mm thick PU/PIR sandwich panels (λ=0.022W/m·K), designed for efficient cold chain logistics, food processing, and pharmaceutical storage.

Core Advantages

      √ Superior Thermal Insulation

  • High-density PU foam core (≥42kg/m³) ensures ultra-low thermal conductivity (<0.024W/m·K)

  • Continuous polyurethane injection eliminates cold bridges, maintaining stable -20°C environment
    √ Optimized Structural Design

  • Clear-span steel frames (up to 40m width) enable column-free interiors

  • Sloped roof (5-10°) facilitates quick snow/rain runoff

  • Reinforced loading zones support forklift operations
    √ Rapid Installation & Mobility

  • Bolt-connected components reduce on-site work by 60%

  • Modular design allows future expansion or relocation
    √ Smart Loading Solutions

  • Adjustable dock levelers (optional) for seamless truck-to-warehouse transfer

  • Extra-wide doors (up to 3.5m) accommodate pallet jacks

End-to-End Customization
Full customization from design to production: Simply provide dimensions, height, color preferences (e.g. RAL codes), steel grade (Q235B/Q355B), and usage (factory/warehouse/logistics center). Our engineering team will:
(1)Deliver 3D conceptual designs within 48 hours
(2) Calculate site-specific wind pressure (resists up to 60m/s), snow load (max. 150kg/m²), seismic forces (compliant with EN 1998/IBC)
(3) Provide structural reports meeting local codes + cost-optimized quotation
ParameterSpecification
StructureGalvanized Steel Frame (Q235B/Q355B)
PanelPU/PIR Sandwich Panel (Thickness: 100-200mm)
Temp Range-40°C ~ +15°C (Customizable)
Fire RatingB1 (GB Standard)
Custom SizesFrom 500m² to 50,000m²

Safety & Economy Unified
• Structural Integrity: CE (EN 1090) & AISC certified steel with FEM analysis ensuring zero failure under extreme conditions
• Cost Savings: Prefabricated components reduce construction costs by 30%, energy-efficient cladding cuts HVAC expenses 20%
• Eco-Friendly: 100% recyclable materials with 95% end-of-life recycle rate

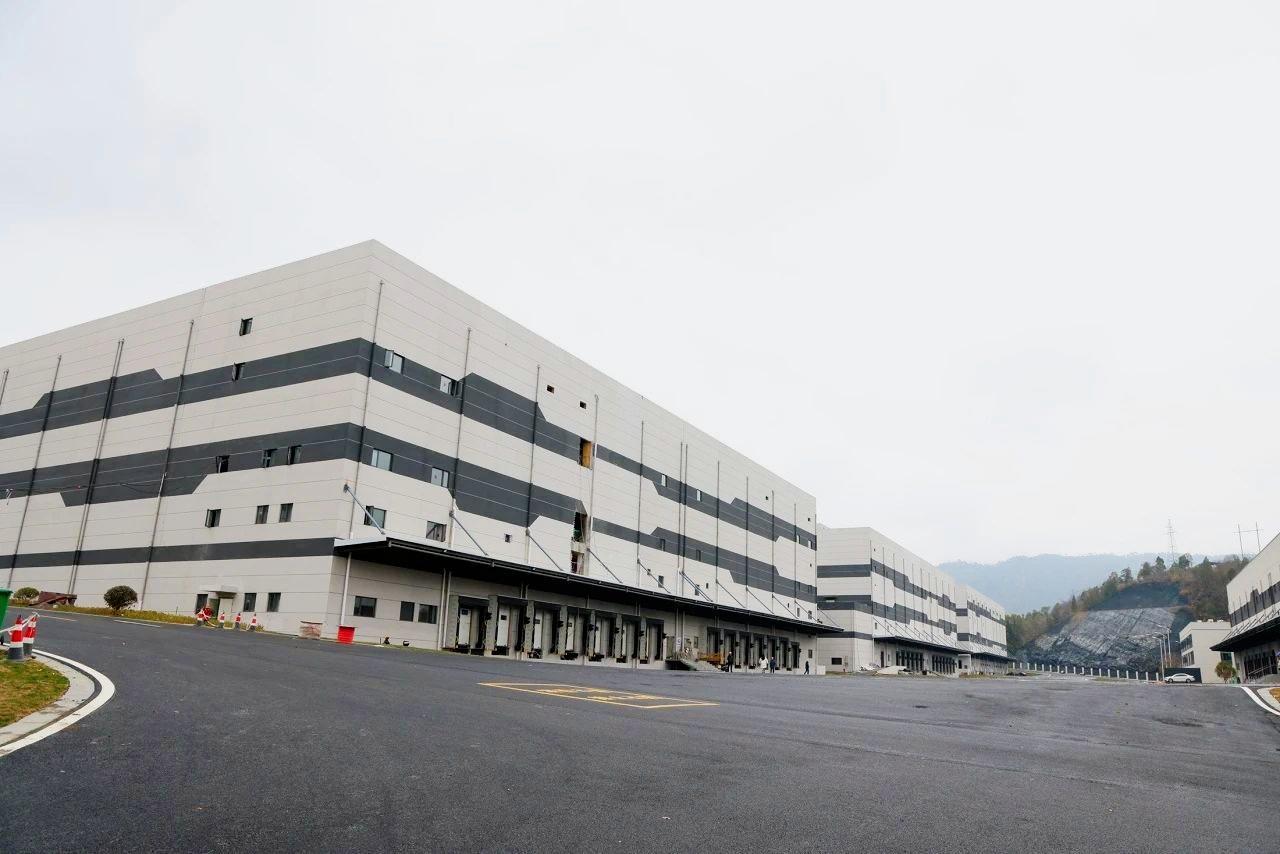

Global Project Portfolio
Serving 64 countries including:
√ China-Europe Railway Express Urumqi Assembly Center Cold Chain Logistics Project
√ Chongren High-Tech Zone Cold Chain Logistics Project
√ Taicang Port Integrated Hub (Multimodal Transport) Logistics Park Phase II
√ Bosch Asia-Pacific Logistics Center (Taicang Port Logistics Park)

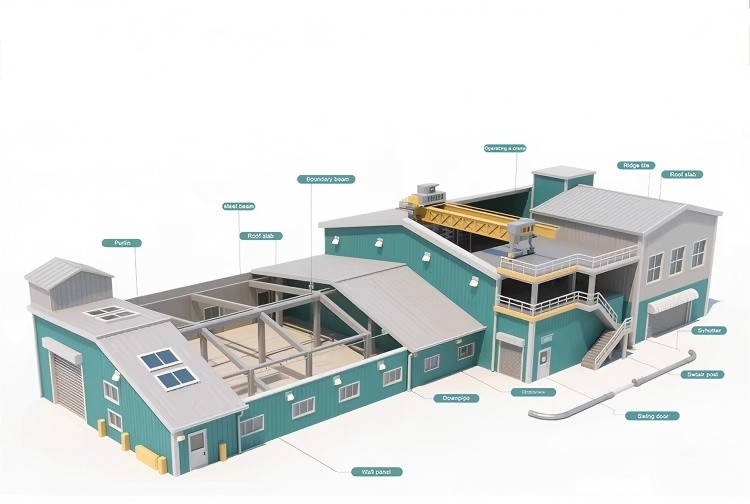

_20250808162616

Manufacturing Excellence
• 20-year specialist with 5,000-ton monthly capacity
• 5 automated H-beam production lines (CNC plasma cutting + robotic welding)
• Certifications: ISO 9001, ISO 14001, AWS D1.1




1. Tiered Protective Packaging

Component TypePackaging MethodProtection Grade
Beams/ColumnsSteel strapping + VCI film + corner guardsIPPC-3
Roof/Wall panelsWooden pallets + PE stretch wrap + scratch-resistant coatingIPPC-2
FastenersGalvanized drums + vacuum bags + desiccantIPPC-1

2. Critical Process Guarantees

  • Anti-Corrosion: VCI vapor corrosion inhibitor applied (MIL-PRF-3420H compliant)

  • Deformation Prevention: Removable braces for over-length components (>12m)

  • Marking System: Lifting points + Center of gravity + ISO 7000 symbols

Our Services

Call to Action
Submit your requirements now to get:
(1) Site-specific climate analysis report (wind/snow/seismic maps)
(2) Material breakdown for reference projects (cost transparency)
(3) FREE design service (limited to 2026.12.31)

Company Overview

H8177e249d99746538e75d6f8dffa97f2w

Shandong Yuegong Steel Structure Co., Ltd.,(YG Steel Structure)a professional steel structure enterprise with over two decades of design and manufacturing expertise, holds China's Class I Construction Qualification and Class A Steel Structure Design Certification. Headquartered in Jinan, Shandong Province, the company occupies a 100,000 m²production base equipped with multiple light and heavy steel production lines.Specializing in manufacturing structural components for industrial facilities,public buildings,municipal bridges,and residential complexes,it maintains an annual production capacity of 50,000 tons of diversified steel components, holding membership in China Steel Construction Society.

Technical Details

H56ddf814f8f6482789819e39e8469bda9
H4c0abd1146f0472588fc1e5875b7264br

We have a designing department, with more than 30 experienced  designers who have abundant practical experience to complete the structural design of various buildings including  industrial plants, warehouses, civil and commercial assembly buildings, venues and exhibition centers, steel structure bridges and other steel structure main projects. The structure is reasonable and the steel consumption is cost-effective.

Application scenarios

H7cbc72660cd44f6d90e5ddd9de5e45f4L

Factory Display

The facility operates 170 sets of advanced fabrication equipment,including large hydraulic press brakes,CNC drilling machines,China's largest shot blasting units,and ultrasonic flaw detectors,ensuring precision manufacturing standards.

  • 15
  • 微信图片_20250605173505
  • 微信图片_20250605173439
  • 微信图片_20250605173448
  • 微信图片_20250605173417
  • 微信图片_20250605173343
  • 微信图片_20250605173318
  • 微信图片_20250605173428
  • 微信图片_20250605173258
  • 微信图片_20250605173235
  • 微信图片_20250605173218
  • 06161146_46
  • 06161146_39
  • 06161146_32

Certificate

  • 职业管理体系认证
  • 特种设备制造证书
  • 科学技术奖
  • 环境管理体系认证
  • 钢结构质量管理体系认证
  • 钢结构信用等级证书
  • 质量管理体系认证

Packing & Delivery

  • H737982c83cbc4a3f8e6906b878ebb229N
  • Hb94675af5325432e9f41c1544074f61ce
  • Hb4dac970519247c98f0e8159444a0b864
  • H8abe21a2bf8c46cbb4ccc0681534a703a
  • H3b722173c2e34ddfa9ba14e9aabe26eaU
  • H62e7887630294d119fc2199937396643A

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. According to the characteristics of the product and the mode of transportation, fix it in the most appropriate and stable way to ensure that there will be no bumps, corrosion, scratches and other problems during transportation.

FAQ

Q: Who are we?

A: Our headquarters is located in Shandong, China. Since 2022, we have been selling our products to Southeast Asia (50.00%), the Middle East (20.00%), North America (10.00%), Central America (10.00%), East Asia (5.00%), and South Asia (5.00%). Our office has approximately 51 to 100 employees.



Q: How can we ensure quality?

A: Samples are always tested before mass production; Final inspections are always conducted before shipment.



Q: What products do we supply?

A: Steel structure workshops, steel structure bridges , steel structure villas, Bailey bridges, grid steel structures



Q: Why choose us to purchase rather than other suppliers?

A: We have 20 years of design and R&D experience, have designed and fabricated hundreds of projects, and hold Class A design and construction qualifications in China. We have also been certified by AISC and UKAS.



Q: What services can we provide?

A: Acceptable delivery terms: FOB, CFR, CIF, EXW; Acceptable payment Currencies: US dollars, Euros, Australian dollars, pounds, and RMB; Acceptable payment methods: telegraphic transfer; Languages of communication: English, Chinese.
