Technical Analysis and Export Specification for High-Performance Industrial Steel Structure Workshop Systems

The contemporary industrial landscape is increasingly defined by the transition from traditional construction methodologies toward pre-engineered and prefabricated steel structures. For a global foreign trade enterprise specializing in the production and processing of structural steel, providing a comprehensive and technically rigorous product detail page is essential for establishing credibility with international engineering, procurement, and construction (EPC) firms. Modern steel structure workshops represent a convergence of material science, structural engineering, and digital fabrication, offering safe, durable, and economically efficient spatial solutions for manufacturing, logistics, and assembly operations.

Structural Philosophy and Core Industrial Utility

The primary objective of an industrial steel structure is to provide a high-performance environment that maximizes usable interior volume while minimizing construction time and material waste. By leveraging the high tensile and compressive strength of steel, these structures achieve spans and clearances that are unattainable with reinforced concrete or timber. The structural integrity of these workshops ensures a solid foundation for diverse business operations, ranging from heavy-duty manufacturing to highly automated logistics centers.

Primary Functional Objectives

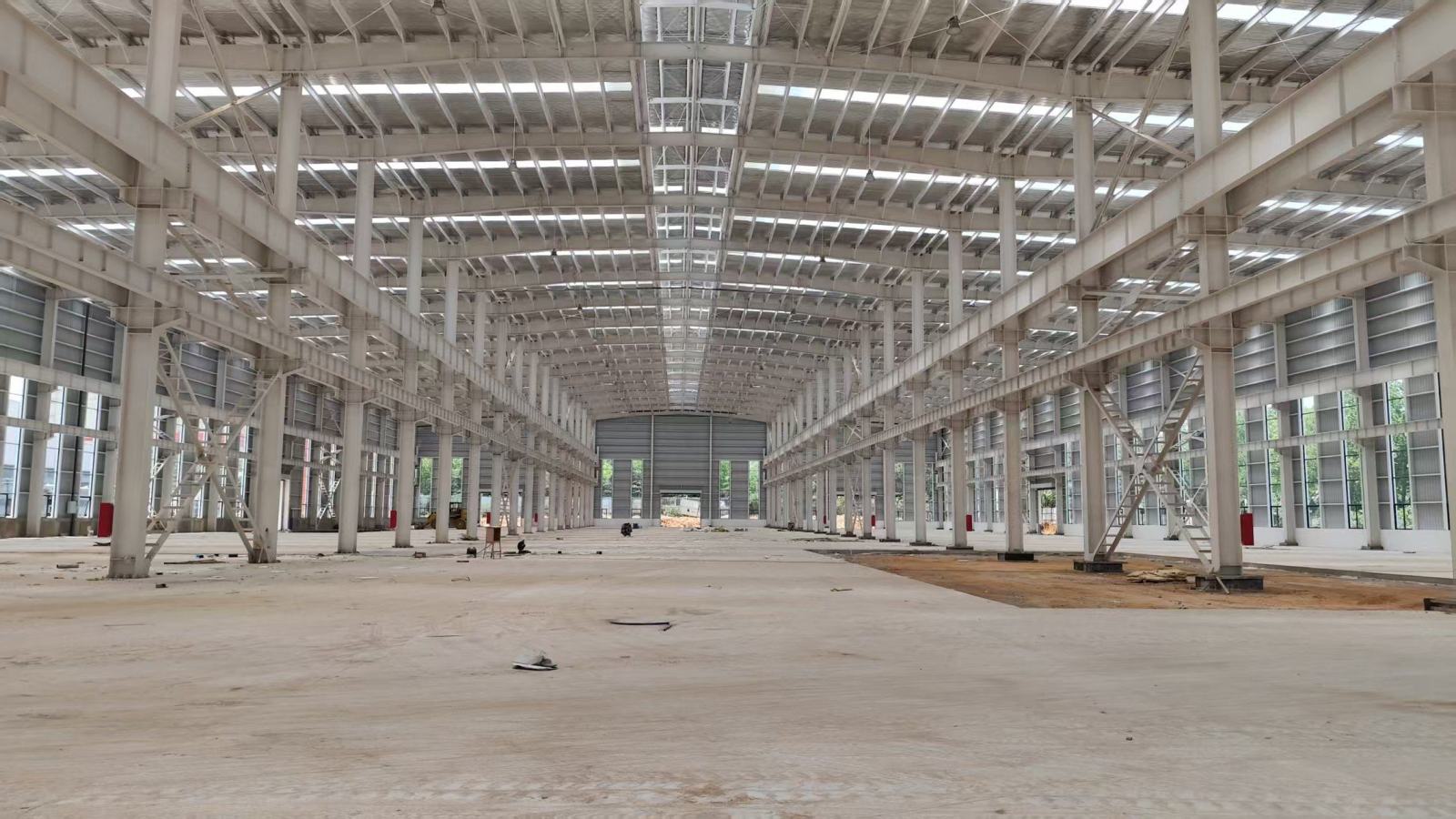

Industrial steel structures are engineered to meet the stringent demands of modern enterprise, specifically targeting the need for large-span, high-clearance environments. The use of portal frames and truss systems allows for the creation of wide-open interiors, often exceeding 60 meters in clear span without the requirement for intermediate support columns. This architectural freedom is vital for the deployment of large-scale machinery, the installation of overhead crane systems, and the fluid movement of heavy-duty vehicles such as forklifts and automated guided vehicles (AGVs) within the facility.

The economic efficiency of these buildings is derived from their prefabricated nature. Components are engineered and manufactured in a controlled factory environment concurrently with on-site foundation work, leading to a total project timeline reduction of approximately 20% to 40% compared to traditional masonry or concrete builds. This rapid deployment capability allows industrial investors to begin operations and generate return on investment significantly earlier, a critical factor in the competitive global manufacturing sector.

Strategic Application Scenarios in Global Trade

The versatility of steel structure workshops makes them suitable for a broad spectrum of industrial and commercial applications. The design can be tailored specifically to the operational workflow of the client, whether the facility is intended for high-rack storage or complex chemical processing.

The adaptability of the steel frame allows for future modifications. As businesses grow, steel workshops can be extended or relocated with far greater ease than concrete structures, providing long-term strategic flexibility for global enterprises.

Environmental Adaptation and Climatic Resilience

Export-oriented steel structures must be engineered to withstand a diverse range of global climatic conditions. From the high-velocity winds of typhoon regions to the extreme temperature fluctuations of arid or sub-arctic environments, the structural and material specifications are adjusted to ensure long-term stability and safety.

Seismic and Wind Resistance

Structural flexibility is a primary advantage of steel in seismic zones. Unlike rigid concrete, steel has high ductility, allowing the structure to absorb and dissipate seismic energy without catastrophic failure. Design specifications typically accommodate seismic resistance up to Grade 8. In regions prone to extreme weather, such as coastal typhoon zones, buildings are engineered to resist wind loads exceeding 300 km/h, utilizing specialized plate-rib structural systems to ensure overall rigidity and prevent cladding detachment.

Thermal Management in Extreme Temperatures

The performance of steel in extreme temperatures is managed through specific material selection and sophisticated enclosure systems. In freezing regions, low-temperature brittle fracture is a primary concern. Engineers specify steel grades such as Q355D or Q355E, which undergo Charpy V-notch impact testing at -20℃ and -40℃ respectively, ensuring the material retains its toughness in sub-zero environments. Conversely, in high-temperature desert or tropical regions, reflective roof coatings and high-performance sandwich panel insulation (PU/PIR) are employed to minimize heat transfer, maintaining internal temperatures and reducing the energy load on cooling systems.

Corrosion Protection in Harsh Environments

For projects in coastal or high-salinity areas, corrosion is the primary threat to structural longevity. Anti-corrosion is achieved through hot-dip galvanization or high-performance paint systems. The industrial standard for extreme environments often involves a three-coat epoxy system: a zinc-rich primer for cathodic protection, an epoxy intermediate layer for moisture barrier, and a polyurethane or polysiloxane topcoat for UV resistance and aesthetic durability.

Engineering Specifications and Technical Parameters

A professional product detail page must present the fundamental parameters that govern the design and fabrication of the structure. These parameters allow the client’s technical team to verify compatibility with their operational needs and local building codes.

Advanced Load Calculations

Structural engineers utilize the Principles of Limit State Design (LSD) as outlined in international standards like Eurocode 3 (EN 1993) or AISC 360. The design value of the effect of actions (Ed) must not exceed the design value of the resistance (Rd):

Where Ed considers the most unfavorable combination of dead loads (cladding, steel weight), live loads (personnel, equipment), and environmental loads (wind, snow, seismic). For workshops equipped with cranes, the dynamic impact factors and fatigue resistance of the runway beams are calculated with high precision to prevent structural degradation over time.

Structural Components and Raw Materials

The quality of an industrial workshop is fundamentally tied to the raw materials used in its construction. The selection of steel grades and enclosure materials dictates the building's performance in terms of strength, insulation, and fire safety.

Primary Framing: The Skeletal System

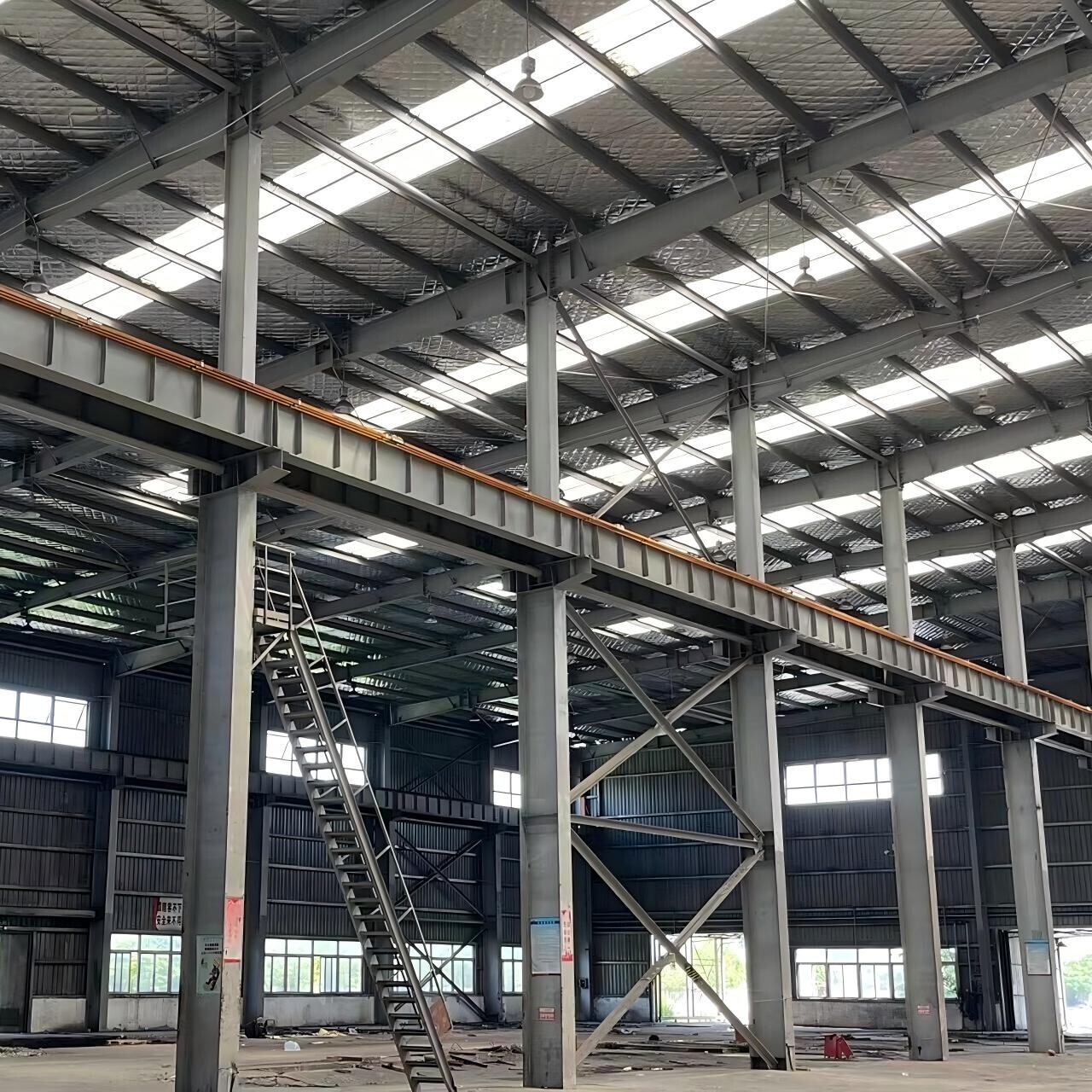

The primary load-bearing frame consists of columns and beams that form the building's backbone. These are typically fabricated from welded H-section steel or hot-rolled structural shapes.

1. Steel Grades: For global export, Q355B (equivalent to S355JR) is the most common material due to its high yield strength (≥355 MPa) and excellent weldability. For heavy-duty industrial platforms or regions with extreme cold, Q355D or Q355E is specified to prevent brittleness.

2. Fabrication Process: Components undergo grit-blasting to Sa2.5 grade to remove rust and scale before the application of primer. Welding is performed by certified technicians using submerged arc or gas-shielded processes to ensure structural integrity.

Secondary Framing and Support

The secondary structure provides the necessary rigidity and supports the wall and roof systems.

• Purlins and Girts: These are cold-formed C or Z-section steel members, usually galvanized for corrosion resistance. They transfer the load from the cladding to the primary frame.

• Bracing Systems: Consisting of rod, angle, or tube bracing in the roof and walls, this network transfers lateral forces (wind and seismic) to the foundation, preventing structural racking.

• Thermal Expansion Joints: In large-span workshops exceeding 120-150 meters in length, expansion joints are integrated to accommodate thermal movement. The movement is calculated as:






Enclosure and Insulation Systems

The cladding system defines the building's internal environment and aesthetic appearance. Modern industrial projects prioritize energy efficiency and fire safety through the use of sandwich panels.

Customization Workflow and Engineering Documentation

A critical differentiator for an export-focused foreign trade company is the ability to provide tailored engineering solutions. Customization ensures that the structure fits the specific site conditions and operational requirements of the client.

The Digital Twin and BIM Integration

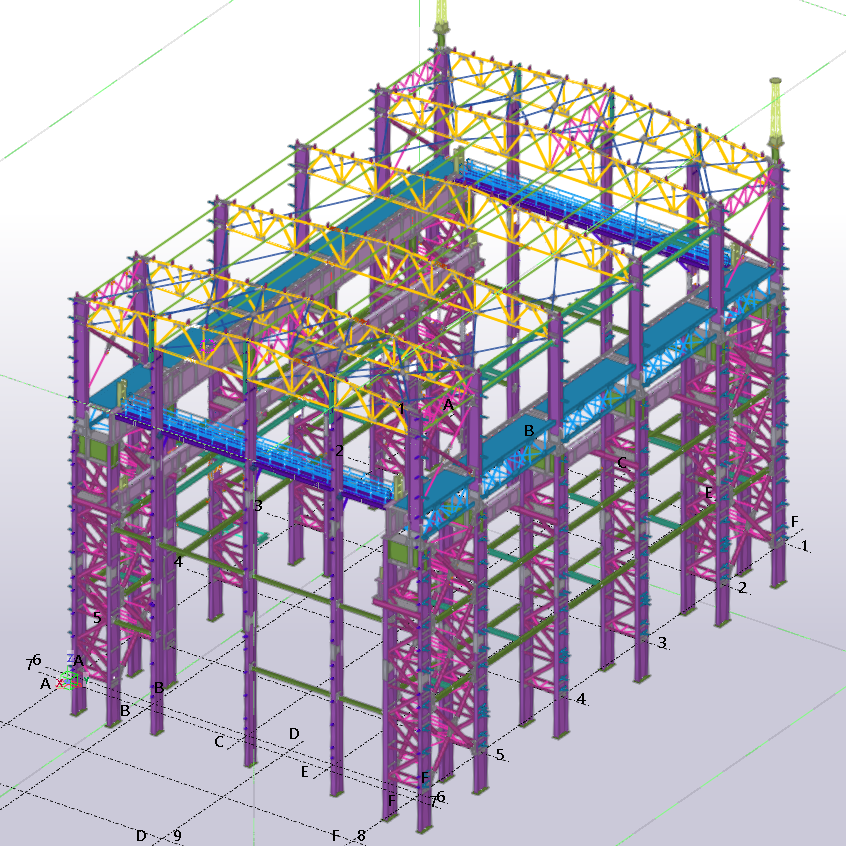

The customization process relies on advanced Building Information Modeling (BIM) using software such as Tekla Structures and AutoCAD.This allows for the creation of a "digital twin" of the building, where every beam, bolt hole, and weld is modeled with millimeter precision before fabrication.This digital workflow eliminates human error and ensures that the prefabricated components fit perfectly during on-site assembly, which is essential for overseas projects where corrections are costly.

Structural Drawing Deliverables

Clients and regulatory bodies require a comprehensive suite of drawings for approval, fabrication, and erection.

1. General Arrangement (GA) Drawings: These provide the overall layout, grid marks, and plan views of the building, showing the placement of all primary and secondary members.

2. Shop / Fabrication Drawings: These are the "blueprints" for the factory, detailing cutting patterns, hole locations, welding symbols, and exact dimensions for every single steel component.

3. Erection Drawings: These guide the construction team on-site, providing step-by-step instructions on the sequence of assembly, bolt torque requirements, and connection details.

4. Material Schedules: A complete Bill of Materials (BOM) that lists every part number, size, weight, and grade, facilitating clear communication and inventory management.

Overseas Project Case Studies and EPC Success

The ability to execute projects internationally is demonstrated through successful case studies. These projects highlight the company's capacity to navigate complex logistics and regional engineering standards.

Case Narrative: High-Span Logistics in Thailand

In Thailand, a massive industrial complex measuring 60m x 155m x 8m was developed as a flagship warehouse and workshop facility. The project’s primary challenge was the requirement for a 60-meter clear span to allow for the movement of heavy machinery without internal columns. Engineers utilized a portal frame system with high-strength Q355B steel and a specialized truss roof to maintain structural stability while optimizing steel weight, resulting in a 30% reduction in material consumption compared to traditional designs.

Case Narrative: Industrial Versatility in Australia

A 2025 project in Australia featured a 25m x 50m x 8m main hall designed as a steel workshop, including a unique two-story annex for administrative use. The project adhered to stringent Australian building codes, incorporating high-performance anti-corrosion coatings to withstand the coastal environment. The prefabricated components were shipped in 40' HQ containers and assembled using a bolt-connection system, significantly reducing on-site welding and labor costs.

Pre-factory Quality Acceptance Standards

To guarantee structural integrity and long-term durability, our QC team strictly adheres to a 30-point inspection protocol:

• Fabrication Precision: Cutting and assembly tolerances are strictly limited to  ±2.0 mm.

• Welding Integrity: 100% visual inspection and NDT (UT/RT) for critical structural joints.

• Surface Protection: Sa 2.5 blast cleaning and precise DFT (Dry Film Thickness) testing.

• Export Packaging: Reinforced steel frames and timber blocking are used to prevent movement during sea freight.

• ......

Logistics, Packaging, and Global Delivery

The success of an export project depends heavily on the integrity of the logistics and packaging process. Seaworthy packaging standards are employed to prevent damage during maritime transport and long-term outdoor storage.

Seaworthy Packaging Standards

To combat the eroding effects of salt air and humidity, structural steel components are protected using a multi-layered approach.

• Bundling and Strapping: Primary columns and beams are bundled in uniform lengths and secured with un-annealed steel straps. Rubber padding is placed under the straps to prevent damage to the surface coating.

• Anti-Corrosion Wrapping: Sensitive components and high-value materials are wrapped in VCI (Volatile Corrosion Inhibitor) film or heavy-duty shrink wrap, creating a moisture-resistant barrier.

• Crating for Small Parts: Bolts, accessories, and windows are packed in ISPM-15 certified heat-treated wooden crates, with waterproof liners and silica gel desiccants inside to prevent oxidation.

Container Loading and EPC Management

Engineering teams optimize the design of structural members to fit within standard 40' High Cube or Open Top containers, maximizing space utilization and reducing freight costs. For companies providing Engineering, Procurement, and Construction (EPC) services, this logistical precision is part of a turnkey solution that includes commissioning and project handover, assuming full accountability for the design, cost, and schedule.
