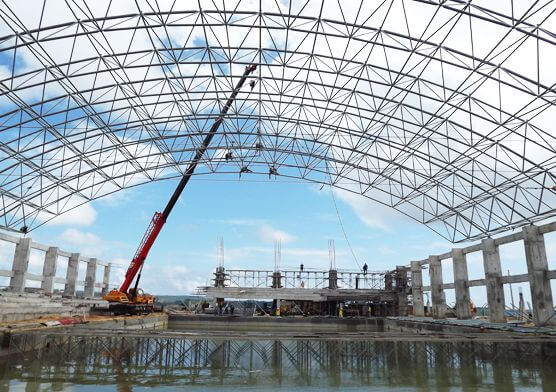

Arch Space Frame

Key Features of Arch Space Frame Structures

1. Structural Composition

• Curved Arch + Space Grid: The structure consists of a three-dimensional truss following a curved (arch) profile.

• Interconnected Elements: Made of linear members (struts) connected at nodes, forming triangular or polygonal units.

• Materials: Typically steel or aluminum for strength and lightness; sometimes reinforced concrete or composites.

2. Load Distribution

• Arches naturally transfer loads as compression forces along their curve.

• Space frames distribute loads in three dimensions, enhancing stability.

• The combination allows for longer spans with fewer supports compared to traditional arches.

3. Types of Arch Space Frames

• Single-Layer Arch Space Frame: Simpler, used for moderate spans (e.g., canopies, small roofs).

• Double-Layer Arch Space Frame: More rigid, used for large-span structures (e.g., stadiums, hangars).

• Tied Arch Space Frame: Uses tension cables or ties to counteract outward thrust, reducing foundation loads.

Advantages of Arch Space Frame Structures

✔ Large Spans Without Intermediate Supports – Ideal for stadiums, airports, and bridges.
✔ Lightweight Yet Strong – High strength-to-weight ratio reduces material costs.
✔ Aesthetic & Functional – Smooth curves allow for visually striking designs.
✔ Modular Construction – Prefabricated components speed up assembly.
✔ Good Resistance to Dynamic Loads – Performs well under wind, snow, and seismic forces.

Applications

• Stadiums & Arenas (e.g., Olympic stadiums, indoor sports halls)

• Airport Terminals & Train Stations (e.g., large-span roofing)

• Bridges & Viaducts (arch-space frame hybrid bridges)

• Exhibition Halls & Convention Centers

• Industrial Sheds & Aircraft Hangars

Famous Examples

1. Bird’s Nest Stadium (Beijing, China) – Combines a steel space frame with an arched lattice shell.

2. Milwaukee Art Museum (USA) – Features a movable arched space frame roof.

3. Singapore Sports Hub – Uses arch-supported space frames for its domed roof.

Comparison: Arch Space Frame vs. Dome Space Frame

Conclusion

Arch space frames are an advanced structural solution for long-span, lightweight, and aesthetically pleasing designs. They merge the best of arch action and space truss efficiency, making them ideal for modern architecture and engineering.
